STAINLESS STEEL SPRAY WASH CABINET
3-PHASE, 200-415VAC, 50/ 60HZ

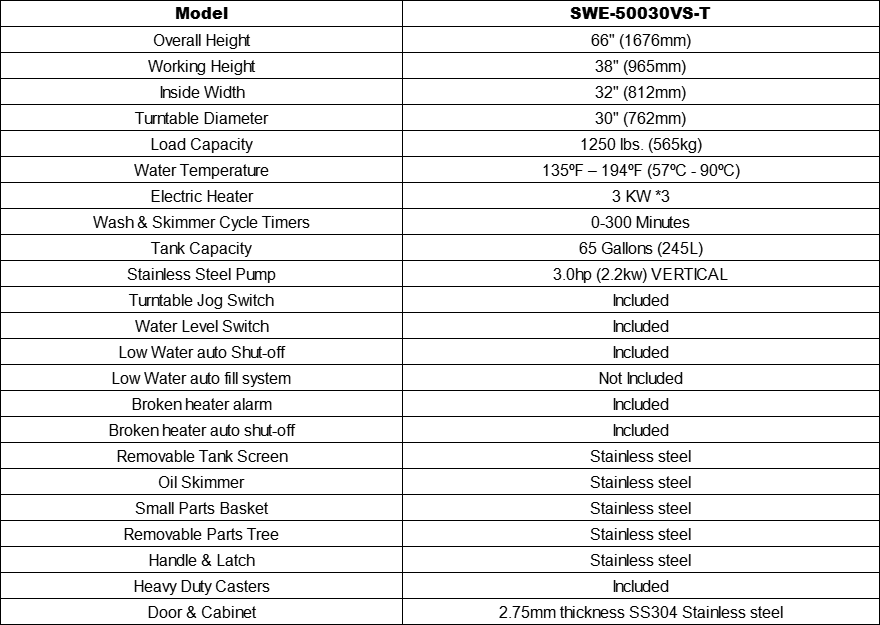

MODEL SWE-50030VS-T
2.2kw Stainless Steel Vertical Water Pump.
The all-stainless steel design* greatly improves the rust and corrosion resistance of the machine, making the service life of the spray wash cabinet longer.
. 24V AC control panel power
. Internal dimensions: 30” turntable; 38” job height; 1250 lbs. max weight capacity
. Low water level alarm and automatic Shut-off protect heating elements and water pump against low water levels
. Broken heater alarm and automatic shut-off
. Stainless steel oil skimmer allows longer use of solution whilst changing less frequently
. Sprocket drive that won't rob you of water pressure like water driven models can tend to do
. Slow 4-5 rpm gives a superior, more thorough cleaning performance over water driven models
. 2.2kw stainless steel Vertical pump that pumps a solid 68 gallons per min
. 65 gallons insulated solution tank provides an ample supply of water for extra heavy-duty parts
. 3 x 3 kw heating elements heating solution up to a maximum of 194F (90C) in approx. 2 hours
. 7-day/ 24hr timer included to eliminate early morning starts for you and your staff
. Full opening gasket free door as gaskets will often perish with long term exposure to steam
. Stainless Steel Removable tank fine filter screen allows for quick and easy cleaning and protects the water pump
. Optional biodegradable, non-caustic, heavy duty powdered detergent.
Features
. Simple Operation
. 0-300 Minute Automatic Timer
. 0-300 Minute Oil Skimmer
. Lower Water Level Sensor Alarm
. Lower Water Automatic Shut Off
. Turntable Jog Switch
. Sprocket Drive Turntable
. Stainless Steel turntable bearings
. Stainless Steel Spray Nozzles
. Stainless Steel Removable Fine Filter
. Stainless Steel Removable Parts Basket
. Stainless Steel Removable Parts Tree
. Accommodates Engine Crane Loading
. Gasket Free Door
. Heavy Duty Polyurethane Casters
. 2.2kw Stainless Steel Vertical Pump
. 1250 lb Capacity Heavy Duty Stainless steel Turntable
. 2.75mm thickness SS304 stainless steel cabinet and door
