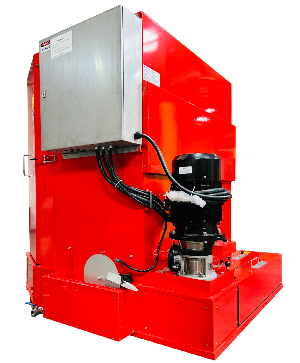

SWE-6060V/25 SPRAY WASH CABINET
​
MODEL: SWE-6060V/25
3-PHASE, 200-415VAC, 50/ 60HZ

The SWE series spray wash cabinets are the parts cleaning equipment for manufacturing and maintenance work cells, or other industrial environments.
This equipment sprays hi-pressure hot water to wash parts and clean grease, oil, grime, machine colorant, dirt, stamping oil, drawing compound and several other manufacturing soils from pans & components.
​
Features
​​​
. 24V AC safety control panel power
. Internal dimensions: 60” turntable; 60” job height; 2500 lbs. max loading capacity
. Low water level sensor and alarm protects heating elements against low water levels
. Stainless steel oil skimmer allows longer use of solution whilst changing less frequently
. 7-day timer included to eliminate early morning starts for you and your staff
. Gear drive that won’t rob you of water pressure like water driven models can tend to do
. Slow 5 rpm gives a superior, more thorough cleaning performance over water driven models
. 7.5kw stainless steel pump that pumps a solid 140 gallons per min at 63 psi
. 160 gallons insulated solution tank provides an ample supply of water for extra heavy-duty parts
. Optional small parts baskets allow for the containment of small parts during washing
. Full opening gasket free door as gaskets will often perish with long term exposure to steam
. Removable tank filter screen allows for quick and easy cleaning
. Optional biodegradable, non-caustic, heavy duty powdered detergent. ​
